RIP

What RIP is (and isn’t)

  • Type: Distance-vector IGP using the Bellman-Ford algorithm.
  • Metric: Hop count (each router = +1). Best path = fewest hops.
  • Infinity: 16 hops (so any route with metric 16 is considered unreachable).
  • Transport: UDP port 520 for IPv4 (RIPv1/v2), UDP port 521 for IPv6 (RIPng).
  • Use cases: Small/legacy networks, labs, or simple hub-and-spoke. It’s simple, but not scalable.

Major flavors

  • RIPv1 (legacy)
    • Classful (no subnet mask in updates) → no VLSM/CIDR; problems with discontiguous networks.
    • Broadcast updates to 255.255.255.255.
    • No authentication.
  • RIPv2 (modern IPv4)
    • Classless (carries prefix length), supports VLSM/CIDR and route tags.
    • Multicast updates to 224.0.0.9 (TTL 1).
    • Authentication (plain text or MD5).
    • Next-hop field lets a router point neighbors to a better next hop on the same LAN.
  • RIPng (IPv6)
    • Multicast ff02::9 (link-local scope).
    • Runs per interface with a process name.
    • No built-in auth; rely on IPsec if needed.

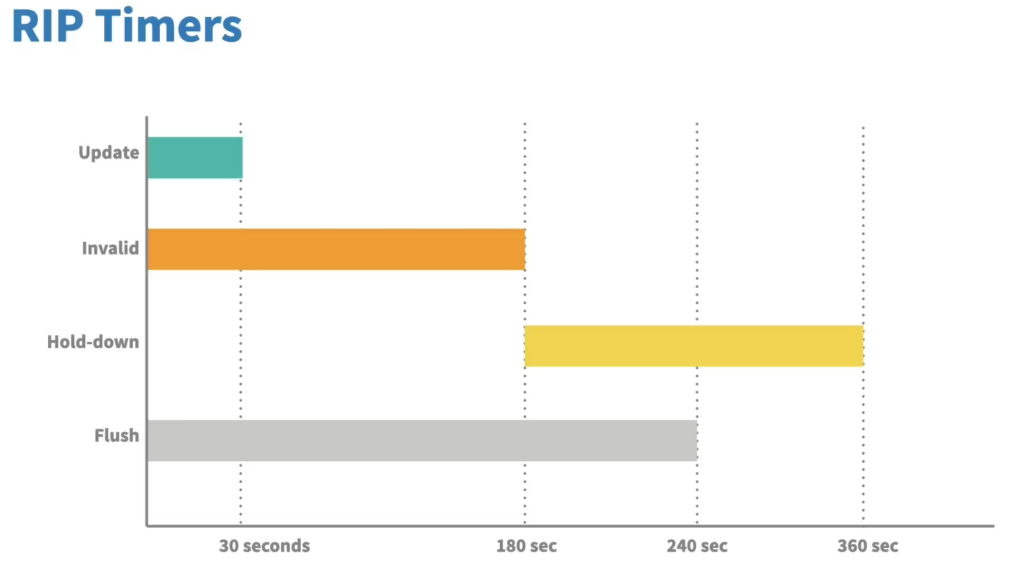

Timers (Cisco defaults)

  • Update: every 30 s (sends the whole table, split horizon rules applied).
  • Invalid (Timeout): 180 s (if not refreshed, route becomes invalid).
  • Holddown: 180 s (suppresses inferior updates for a route thought to be failing).
  • Flush (Garbage): 240 s (remove route from RIB if no good news arrives).
  • Note: Triggered updates fire immediately on significant change (don’t wait 30 s).

Loop prevention & stability tricks

  • Split Horizon: Don’t advertise a route back out the interface it was learned on.
  • Poison Reverse: Do advertise it back—but with metric 16—to kill loops on multi-access.
  • Route Poisoning: When a route fails, immediately set metric to 16 and advertise.
  • Holddown: After a failure, ignore worse metrics for a period to let bad news propagate.
  • Triggered updates: Faster convergence by pushing immediate deltas.

Packet anatomy (RIPv2 highlights)

  • Command: 1=Request, 2=Response (update).
  • Version: 2 for RIPv2.
  • Entries: up to 25 routes per message. Each entry includes:
    • Address Family ID, IP, Subnet Mask, Next Hop, Metric (1–16), and Route Tag.

Administrative behavior (Cisco)

  • Administrative distance (AD): 120 (worse than OSPF 110/EIGRP 90/110; better than external BGP 20?Note: eBGP AD is 20 which is better than RIP).
  • ECMP: Load-balances across equal-cost RIP paths (typically up to 4 by default).
  • Summarization: RIPv2 supports manual/auto; beware auto-summary on discontiguous networks (disable it).

Configuration examples

Cisco IOS – RIPv2 (IPv4)

conf t
 router rip
  version 2
  no auto-summary       ! critical for discontiguous networks
  network 10.0.0.0
  network 192.168.1.0
  passive-interface GigabitEthernet0/2   ! don’t send updates on access VLANs
  timers basic 30 180 180 240            ! (optional) explicit timers
  !
  ! Authentication (per-interface)
interface GigabitEthernet0/1
 ip rip authentication mode md5
 ip rip authentication key-chain RIP-KEYS

key chain RIP-KEYS
 key 1
  key-string Str0ngKey

Default route options (pick one):

  • Inject a static default into RIP: ip route 0.0.0.0 0.0.0.0 <next-hop> router rip redistribute static
  • Or advertise a default explicitly: router rip default-information originate

Filtering examples:

! Inbound filter: only accept certain prefixes
access-list 10 permit 10.0.0.0 0.255.255.255
router rip
 distribute-list 10 in GigabitEthernet0/1

! Version control on a per-interface basis
interface GigabitEthernet0/1
 ip rip receive version 2
 ip rip send version 2

Cisco IOS – RIPng (IPv6)

conf t
 ipv6 unicast-routing
 ipv6 router rip LAB6            ! create RIPng process (name is local only)
 !
interface GigabitEthernet0/1
 ipv6 address 2001:db8:1::1/64
 ipv6 rip LAB6 enable            ! RIPng runs per interface
!
interface GigabitEthernet0/2
 ipv6 address 2001:db8:2::1/64
 ipv6 rip LAB6 enable

FRRouting/Quagga (Linux) – RIPv2 quick sketch

router rip
 version 2
 network 10.0.0.0/8
 network 192.168.1.0/24
 no auto-summary
 redistribute static
!
interface eth0
 ip rip send v2
 ip rip receive v2

Operational tips & troubleshooting

  • See what RIP is doing
    • show ip protocols – timers, networks, neighbors heard from, filters.
    • show ip rip database – RIP’s view of learned prefixes (with next hops/metrics).
    • show ip route rip – what made it into the RIB.
    • debug ip rip – live updates (use carefully in production).
  • Common pitfalls
    • Auto-summary causing wrong masks → use no auto-summary.
    • No adjacency concept in RIP; it’s stateless gossip. If you don’t see routes:
      • Are updates arriving on the interface (ACLs/firewall/UDP 520 allowed)?
      • Are you sending/receiving the right version (v1 vs v2)?
      • Passive interface inadvertently set?
      • Authentication mismatches (key/key-string/MD5 vs plain text)?
    • Discontiguous networks with classful assumptions (RIPv1 or auto-summary).
    • Convergence delay under failure—RIP can be slow and prone to count-to-infinity.

Design guidance—when (not) to use RIP

  • Use RIP if:
    • The network is tiny and static (≤ a few hops), you need simplicity, and devices are old.
    • You’re in a lab/classroom learning fundamentals.
  • Prefer OSPF/EIGRP/IS-IS if:
    • You need fast, deterministic convergence, scalable areas, richer metrics, or robust loop-avoidance.
    • You expect more than ~15 hops, complex summarization, or traffic engineering.

Security considerations

  • Limit update exposure (layer-2 boundaries, VRFs).
  • Use MD5 authentication on RIPv2; set passive-interface on untrusted edges.
  • Filter routes with distribute-lists/prefix-lists.
  • Remember RIPv2 multicasts with TTL=1, but an L2 leak can still cause mischief.

Quick mental checklist

  1. version 2 and no auto-summary
  2. Networks under router rip match connected interfaces
  3. Passive-interface access-side
  4. Auth (MD5) on shared segments
  5. Filters if mixing with static/redistributed routes
  6. Watch timers and consider triggered updates behavior
  • Distance Vector Routing Protocol: RIP is a distance vector routing protocol that uses hop count as its metric to determine the best path.
  • Simplicity and Efficiency: Due to its simplicity, RIP requires less CPU and memory, making it suitable for low-end routers.
  • Limitations: RIP only considers hop count and not link speeds, which can lead to suboptimal path selection. Additionally, it has a maximum hop count limit of 15, making it unsuitable for large networks.
  • Route Updates: RIP routers share route information through periodic updates, using broadcast in RIP version 1 and multicast in RIP version 2.
